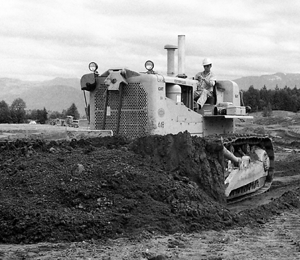

With an operating weight in excess of 47,000 pounds and a 235 HP turbocharged diesel engine for power, the Caterpillar D8H track type tractor literally changed the face of the world. First introduced in 1958, the D8H had more of an impact on the earthmoving industry than any machine before it - and many, many after it. With an innovative new design that optimized operator comfort and usability to help maximize production, the D8H was quickly accepted as the industry standard for large earthmoving applications.

As testimony as to how advanced the tractor was when introduced, consider first that it was in production for almost 15 years. In the world of construction equipment, that in itself is an accomplishment that very few machines have ever attained.

During that time span, more than 50,000 D8H tractors - yes, fifty thousand - were delivered around the world. Their durability and enduring popularity is easily verified by the number of these tractors still in use today in every conceivable type of earth moving operation imaginable - pushing, pulling and ripping their way to legendary status.
In honor of the legendary status this machine has earned, the decision for Classic Construction Models (CCM) to produce a model of the D8H was in part linked to their landmark 1:24 precision scale all brass model released in 1996 of the Caterpillar Seventy, the largest gasoline powered tractor ever produced by Caterpillar. Following the Seventy, CCM produced 1:24 precision scale models of the Caterpillar Ten and D2, the smallest gasoline and diesel powered tractors made by Caterpillar and the D11R, the largest diesel tractor Caterpillar has manufactured to date. With this well established family of models, the decision to produce an H series D8 - in essence the great grandson of the Caterpillar Seventy - created a model that fit into the middle of the long line of legendary tractors produced by Caterpillar.

Although the model was released in December of last year, development actually began in 2002 when CCM acquired a set of factory general arrangement drawings. After discussing the different versions of the H series tractors, it was decided to build a model of an early machine with a direct drive transmission and cable operated blade - specifically a circa 1960's 36A machine. With the specific tractor selected, CCM began the process of sourcing all the information required to build a true, precision scale model.
As it turned out, the primary source of information for creating the model of this vintage machine was not Caterpillar, but instead the photographs, drawings and measurements compiled by CCM. Over the course of several months, hundreds of photographs with measurements, schematics and diagrams were compiled from two separate prototype 36A D8H machines.

Countless days were spent examining the smallest of details and then documenting them for the model makers' reference. With this information, the process of creating the first model from raw brass began.
As museum curators know, there is no material better suited for creating mechanically accurate miniatures of complex equipment than brass. The ability to cast, etch, machine and form brass at any scale is what allowed CCM to create a model that approaches being a part-for-part recreation of the actual machine. Unlike a die-cast model which must maintain a minimum thickness - regardless of the dimension of the original part - brass can be as thin or as thick as is necessary.
This means sheet metal on the real machine can be sheet brass on the model and parts that are cast in iron at full scale can be perfectly replicated in reduced size from cast brass. Similarly, the versatility of brass enabled CCM to investment cast complete parts with shapes so complex they could never be successfully produced through die-casting or any other metal modeling method. The result, with hundreds of hand made brass parts laboriously assembled into a single D8H model, is absolutely stunning.

Equipped with a Caterpillar No.30 front cable control unit that operates the working blade as well as a working Carco J-120 winch mounted on the rear, the CCM D8H model showcases the finest in model skills.
The highly detailed 235 HP Cat diesel turbocharged engine, direct drive transmission and complete undercarriage are a perfect compliment to the individually linked, free rolling tracks complete with spring loaded track tensioners and roller guards. A close look under the hood shows details such as the shrouded radiator fan - with drive belts of course - as well as visible fuel injectors, manifolds, fuel lines and complete pony motor. Even the control levers are connected through the control panel and into the engine compartment.
Other precisely detailed features include a full complement of operator's controls with visible gauges on the dash, moving levers and diamond plate flooring. Flawless exterior sheet metal work with rivets, accurate perforations on the radiator guard, front and rear spotlights and a working rain cap on the exhaust help complete this truly amazing replica.

With "old Cat yellow" paint and vintage markings, this model looks like it just came off the production line in 1960. Although the tool box next to the operator's seat is not strictly factory, it was decided to include it on the model for two reasons: 1) Virtually every operator CCM spoke to said that is where they carried their lunch box and thermos of coffee and 2) Putting an opening lid on the tool box created the perfect place to put the engraved serial number plate for the model.

As there is no substitute for the high level of skill required to assemble the hundreds of individual pieces used to create a museum quality model like the D8H, the number that can be produced is obviously very limited. Thus the total production for the CCM D8H model was limited to only 348 models, each one registered and certified; ensuring the collectibility and demand for this model will outlive those who created it.

Those collectors who favor newer machines will be excited to know that at about the same time Caterpillar completed their review of the pre-production D8H model, CCM agreed that a D8T, the newest of the D8 tractors, would be the next 1:24 precision scale Cat tractor model they produce. In addition, they have confirmed the development process for a model of a D8H with hydraulic blade and ripper is currently underway. If that's not enough for the vintage crowd, there are a number of drawings already completed for a scraper and rear mounted double drum cable control unit for a special version of the D8H.

The Cat D8H model from Classic Construction Models is the most recent example of their continuing determination to produce construction equipment models at the highest of standards. There is no doubt this legacy of limited edition models will continue to thrill construction collectors for generations to come, making it a necessity to find room for at least one of these legendary models in their collection.

All Materials © Classic Construction Models
Story and photographs by Jason Diamond
